Linking Bluebeam with InEight Document

Bluebeam connects with InEight Document using Bluebeam’s SharePoint integration capabilities.

Linking Bluebeam with Document

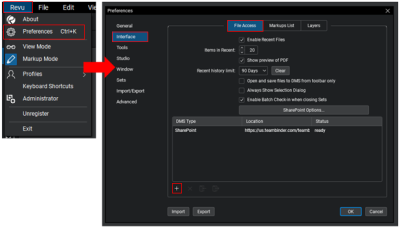

1. From the Bluebeam menu, click RevU, and then select Preferences.

2. Under the Interface section, click the File Access tab, and then click Add.

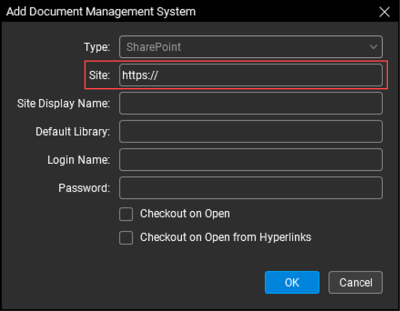

3. Enter the Document project address into the Site field using one of the following formats:



   • For non-SSO users:

     https://<SERVER>/TeamBinderBB/PROJNO<PROJECTNUMBER>

     Replace <SERVER> with the server domain that the project is located on. You can identify your server domain in the URL when you log into your project.

     Replace <PROJECTNUMBER> with your project number.

     For example: https://au1.doc.ineight.com/TeamBinderBB/PROJNOPDDEMO6

   • For Azure AD Single Sign-on (SSO) users:

     <Reply URL>/PROJNO<PROJECTNUMBER>

     Replace <Reply URL> with the appropriate URL address.

     You can identify your Reply URL in Company Details > Single Sign-On Setup.



     Replace <PROJECTNUMBER> with your project number.

     For example: https://aus18.teambinder.com/InEightAZAD/PROJNOPDDEMO6

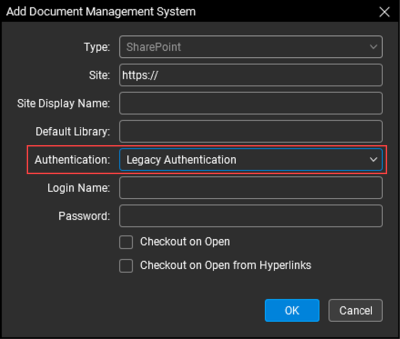

4. If you are using Bluebeam RevU version 20 or later, select Use Legacy Authentication from the Authentication drop-down menu.

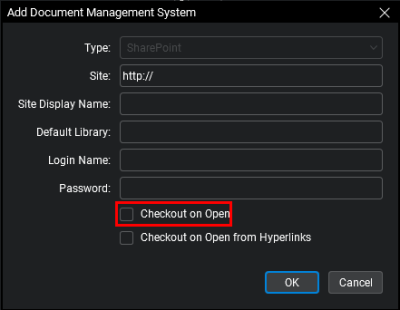

5. Select the Checkout on Open checkbox (as shown above) to enter editing mode automatically once the document is opened in Bluebeam.

   Documents must be checked out before new versions can be created within Bluebeam.

6. Click OK.

To further sort this document list by field (for example, Disciplines or Type), specify a direct path in the Site field. For example: https://au1.doc.ineight.com/TeamBinderBB/PROJNOPDDEMO6/Discipline/Type
