FINALIZE AND APPROVE BASELINE SCHEDULE

image of a male construction planner-scheduler in front of the computer screen
Use Case

The scheduler finishes detailing out the schedule and reviews it with his project team. Once finalized, he submits the proposed baseline schedule to the client, who after some adjustments approves the schedule. The scheduler makes a baseline copy of the project.

This section covers how to export the detailed CPM schedule for review and how to create a baseline copy of the schedule once approved.

Get Feedback to Validate the Plan


Schedule Export

When the schedule is ready to be submitted for approval, you have several export options available. The following sections will demonstrate two common export types: XER and PDF.

Export XER File

Follow the steps below to learn how to export to an XER file.

Step 1

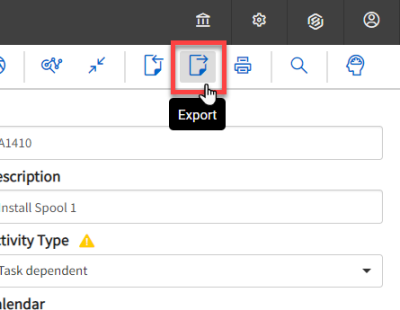

From the Plan view, you click the Export icon at the top right of the page.

A screenshot of a computer

Description automatically generated

Step 2

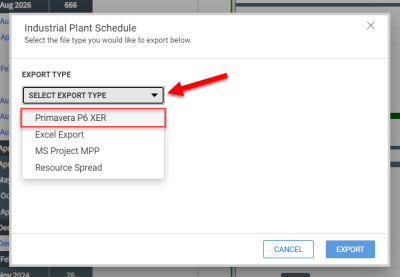

Open the Export Type drop-down menu and select Primavera P6 XER.

A screenshot of a computer

Description automatically generated

Step 3

Click Export. The XER file will download to your browser’s Download folder.


Export PDF File

You have the option of saving the schedule as a printable PDF file. Follow the steps below to learn how to customize and save a PDF.

Step 1

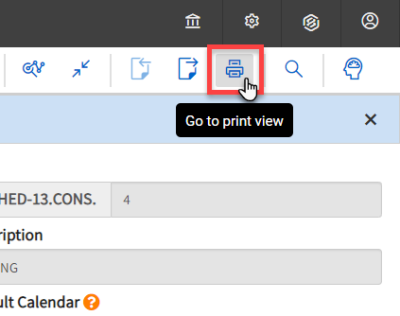

From the Plan view, you click the Print icon at the top right of the page.

A screenshot of a computer

Description automatically generated

Step 2

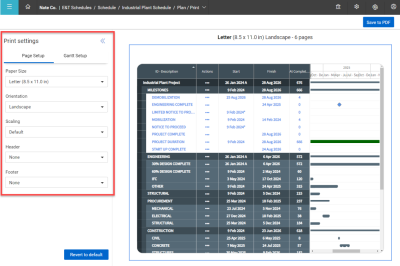

The print view opens to the Page Setup tab, where you can change the paper size, orientation, scaling, header, and footer settings.

A screenshot of a computer

Description automatically generated

Step 3

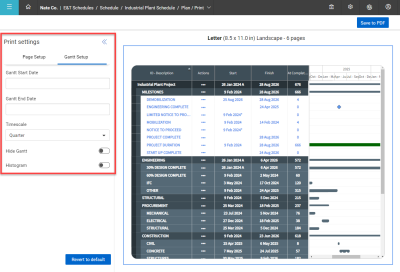

You switch to the Gantt tab. Here you can select start and end dates and a timescale period such as Week, Month, or Quarter. You can also choose to hide the Gantt chart and/or show the histogram.

A screenshot of a computer

Description automatically generated

Step 4

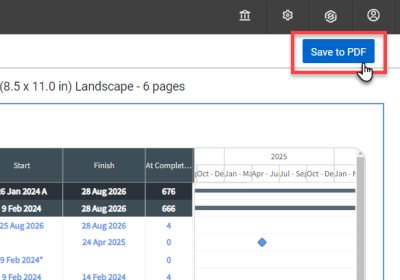

When you’re satisfied with your settings, click Save to PDF.

A screenshot of a computer

Description automatically generated

Step 5

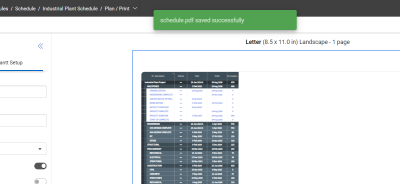

A success message will show when the PDF has been saved successfully. Your file is now ready for sharing or printing.

A screenshot of a computer

Description automatically generated

Access the following link to learn more about exporting:

Export a Schedule

Print View


Create Baseline Schedule

After the schedule is approved, you can create a baseline schedule. This copy of the schedule maintains a record of what was agreed to during the approval process, and in some cases may represent a contractual agreement. As the project progresses, stakeholders can compare updated versions of the schedule to the baseline.

Follow the steps below to see how this works.

Step 1

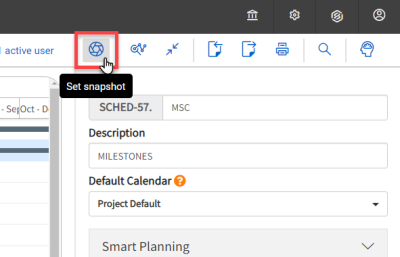

From the Plan view, click the Snapshot icon at the top right of the page.

A screenshot of a computer

Description automatically generated

Step 2

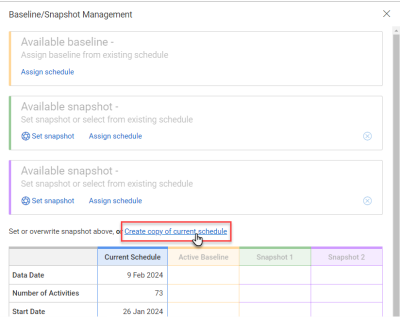

In the Iris panel, click Create copy of current schedule.

A screenshot of a calendar

Description automatically generated

Step 3

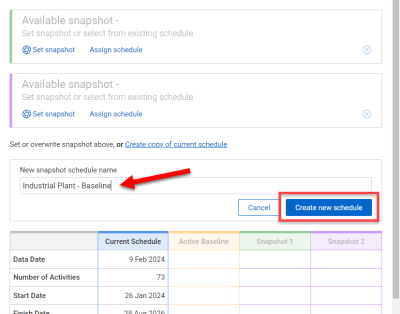

Input a name for the baseline schedule and click Create new schedule.

A screenshot of a schedule

Description automatically generated

Step 4

Now that the copy has been created, you can configure it as a baseline schedule.

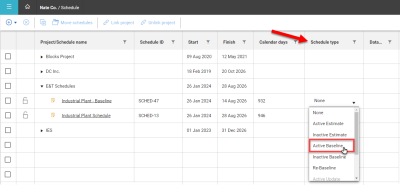

Return to the Project List view to access the copy of the schedule. Under the column Schedule Type, open the drop-down menu and select Active Baseline.

A screenshot of a calendar

Description automatically generated

Step 5

Now the baseline will automatically be assigned to the schedule as the active baseline.

If you need to assign the baseline manually, return to the Snapshot page in the Iris panel. In the Active Baseline field, select the saved copy from the drop-down menu. Then click Save.

A screenshot of a computer

Description automatically generated


Compare Schedules

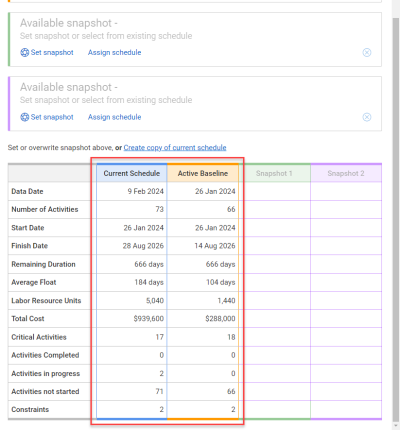

With the active baseline schedule saved, you can quickly compare schedule details in the Iris panel.

A screenshot of a calendar

Description automatically generated

You can also see the baseline represented on the Gantt chart.

A screenshot of a computer

Description automatically generated

Access the following link for additional information on baseline schedules.:

Baseline-Snapshot
