Coordination Issue Management consist of managing the Clash Statuses, the Issue Statuses, Updating the Issues and possibly reporting those to other stakeholders.
Only an Admin user can manage Coordination Issues. Standard users can have management rights, but only through a request to InEight to set it up.

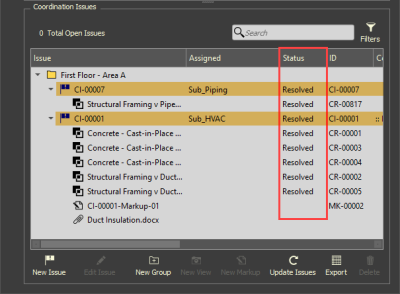

There are multiple statuses associated with Issues and Clashes.
When all clashes, contained within an issue, are set to either closed, ignored, or resolved, then the issue will automatically update its own status to resolved.
Once an issue status has been updated to resolved, the responsible coordinator should visually inspect the issue to ensure that it was resolved in a satisfactory manner. Then the coordinator can change the issue status to closed.
If one or both intersecting objects have been deleted within the design model, and the revised design model has been uploaded into InEight Model and the update issue has been executed, the clash will be set to an Invalid status. This indicates that InEight Model can no longer detect the clash since it cannot detect the source object(s). Invalid clashes are treated as resolved issues.
Within the Coordination Issue table area, the columns can be rearranged to a desired order and persist.
Upload the revised model stream.
Right click on the Resolved Issue, then select Closed from the drop-down list.
Or, select the Issue, then click on the Edit Issue icon.
