BIM Collaboration Format (BCF) Import / Export

Coordination Issues can be exported as a BCF file to support collaboration with other applications. BCF exports will include clash results, viewpoints, and markups.

Step by Step — Export Issues to BCF

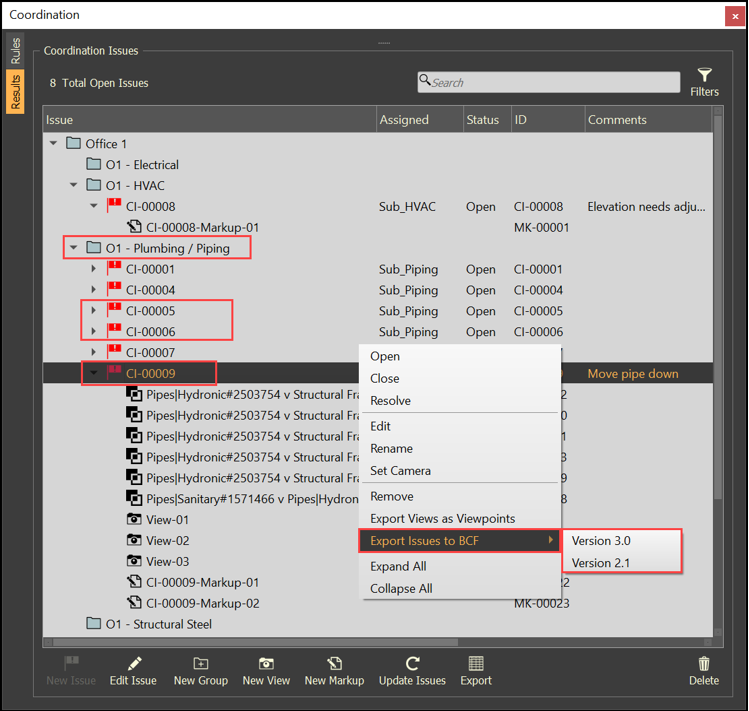

  1. Select one or multiple issues or a group containing issues.

  2. Right click and select Export Issues to BCF, then select a version.

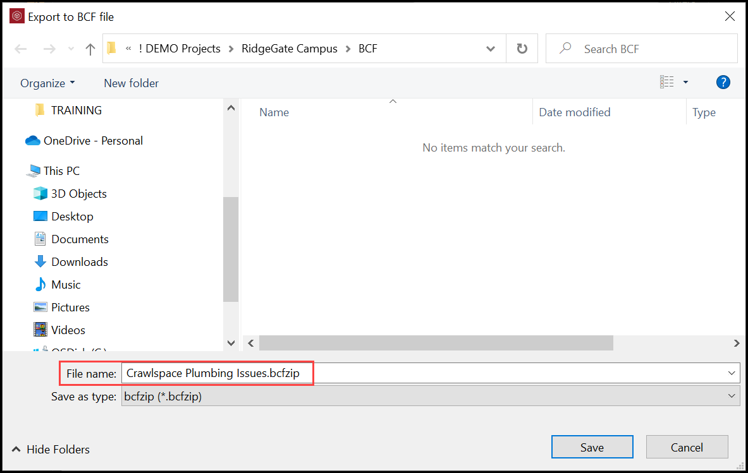

  3. Browse to a desired location to store the .bcfzip file and provide a logical name.

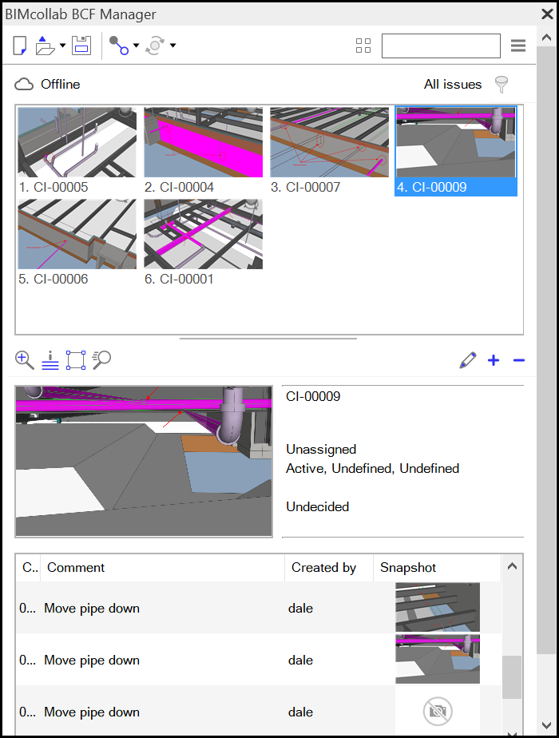

  4. Open the .bcfzip fil in other applications.

Step by Step — Import Issues From BCF

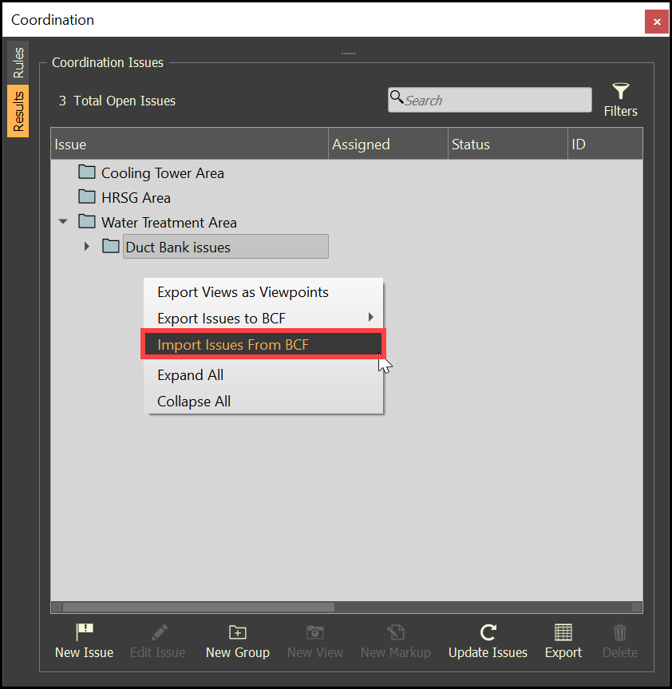

  1. Within the Coordination Issues area, right click and select Import Issues From BCF.

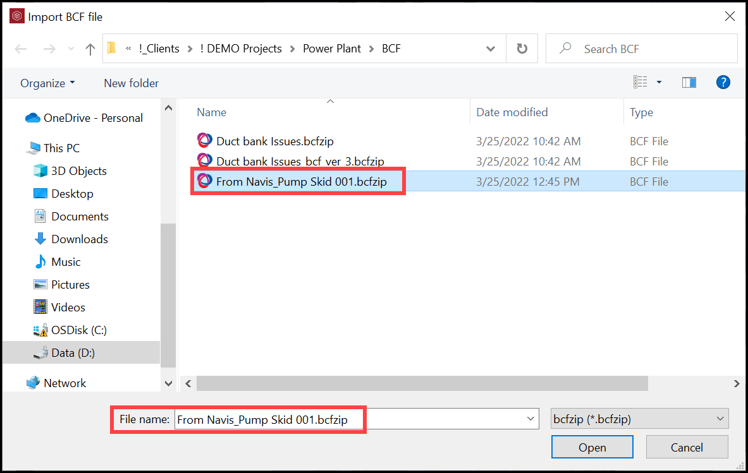

  2. Browse to a .bcfzip file and open.

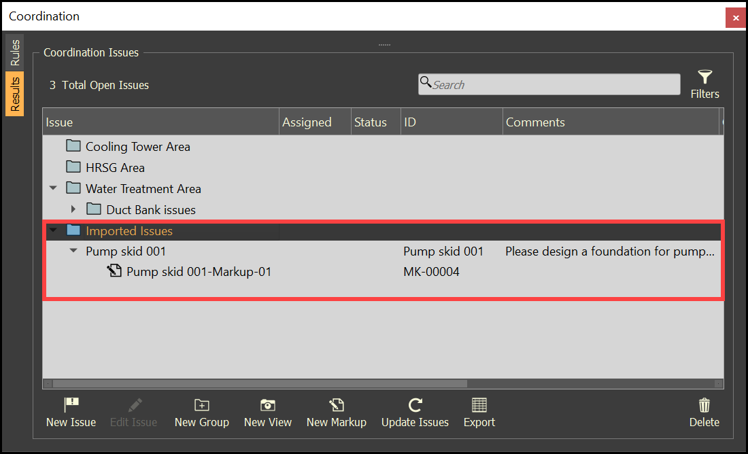

    • Imported Issues group will be created to store the imported BCF files.

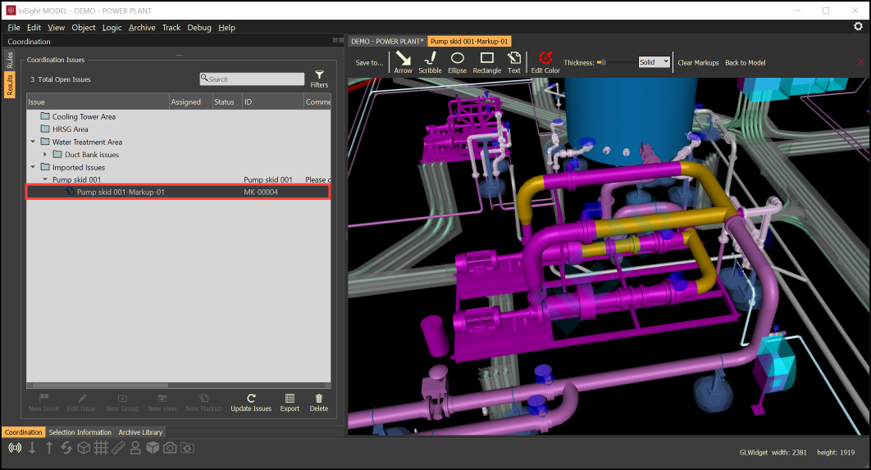

  3. Double click on the markup to view the imported markup.

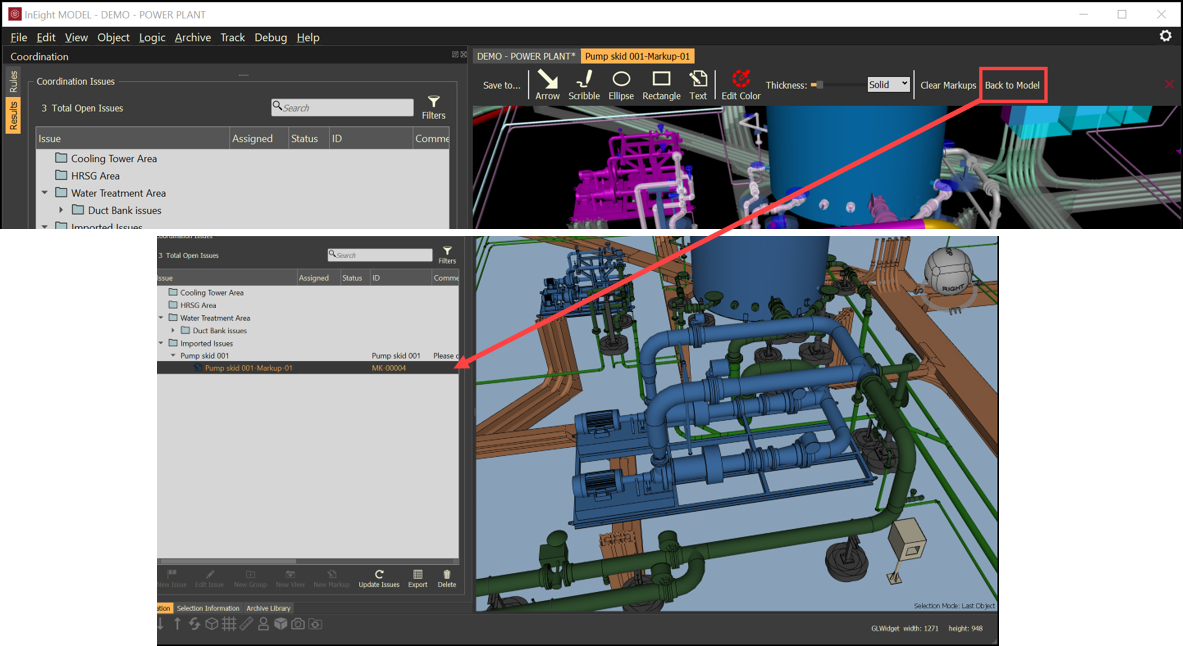

  4. Select Back to Model to interact with the model at that markup location.
