Model 24.7 Release Notes

VIDEO | 24.7 Release Overview

General release is available starting 05-AUG-2024.

Updated 05-AUG-2024

Desktop Release Notes

  • Model and InEight Estimate DTO integration– You can now sum DTO object quantities and sync with Estimate at the parent level. Previously, you could only sum object quantities at the child level. ClosedRead more

    To sum object quantities at the parent level in Estimate, select a parent CBS item, define applicable UDF fields 12 through 15 by entering your information, and then select Send Selected CBS to Model.

    In Model’s DTO panel, you can select the parent level DTO, sum its quantities in the Actions tab, and then run the selected DTO to create the quantities. In Estimate, select Sync Model Quantities, and then select the quantities to push them to Estimate. For more information about summing quantities at the parent level, see the new Summing quantities using a parent cost item section in Model and Estimate integration using the Model Connector.

  • InEight Estimate user defined field integration with Model – When you send CBS items from Estimate to Model, you can now use the User Defined 11 field as a UoM tag in all levels of the CBS structure and integrate with the Quantity Type Tag name in the DTO’s Action tab in Model. You do not have to select the UoM drop-down list to select from it. ClosedRead more

    In the User Defined 11 field in Estimate, type a valid Model tag name you can use for summing quantities in Model, and then select Send Selected CBS to Model.

    In Model > DTO > Actions > Quantity Type, it shows the tag name from the User Defined 11 field in Estimate. For more information about user-defined fields, see the new User-Defined Fields topic.

Mobile Release Notes

  • AWP component claiming integration with InEight Plan – You can now perform component claiming for AWP and then sync changes with Plan. ClosedRead more

    When you perform claiming in the AWP panel, all updates are saved to your Project Updates queue. When you sync the changes, the updates for claiming now sync with Plan. You must perform a sync in Model to sync your claiming updates to Plan.

    The following image shows claiming in the AWP panel:

    You can perform bulk and individual claiming at the CWP and IWP level.

    You can also perform partial and full claiming by tapping individual steps and entering the install quantity or select Yes in the Is Complete field:

    For more information, see the new Quantity claiming topic in Advanced work packaging and workface planning.

  • Manage tags from the Tags panel – You can now create new tags using the Add new tag icon and manage existing tags in the Tags panel. ClosedRead more

    In the Tags panel, you can now add new tags using the Add new tag icon, add tag values, update and remove tag value associations.

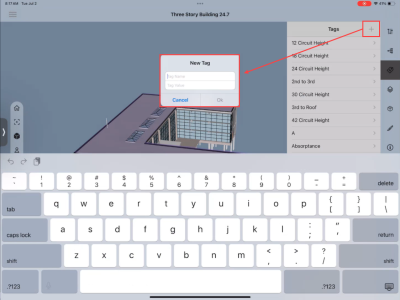

    Create new tags

    To create a new tag, tap the Add new tag icon, enter the new tag information, and then tap Ok.

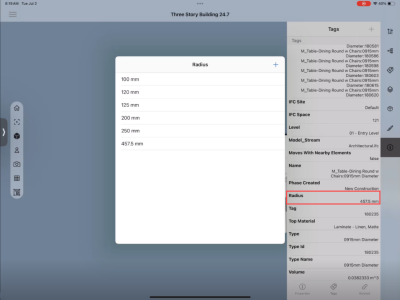

    Add or update tag values

    You can add or update tag values by swiping right on a tag, and then tap Select. Choose a tag value from the list or tap the Add tag value icon, and then entera new tag value.

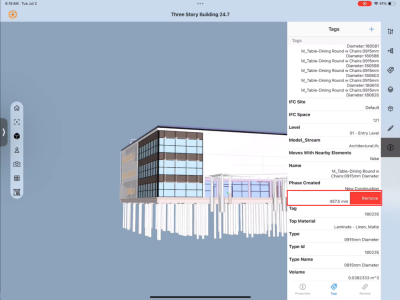

    Remove tag values

    You can remove associated tag values by swiping left on a tag, and then tapping Remove.

    For more information, see the new Tags and objects topics.

Admin Tools Release Notes

In this release, no features were added but technical improvements were made in the background to enhance your experience in Admin Tools.

Microsoft Excel Plug-in Release Notes

  • InEight Visual Report tab - InEight Schd Inspector tab has been renamed to InEight Visual Report to match the function of the tab.

  • Show Complete option – A Show Complete option has been added to the Define Colours section in InEight Visual Report > Interrogator Settings to show the cumulative view of completed items for the set period in Auto Increment Settings. ClosedRead more

    When you select the Show Complete option and Auto Increment is set to On, you can view a cumulative view of completed items for the set date range. As you increase the date range, completed items also increase for those dates to give you a snapshot for future dates in the Excel Plug-in.

    You can also select Auto Increment to show the completed items in Model.

    For more information, see InEight Visual Report.
