Claim In Plan and Progress

project controls manager on the phone
Use Case
  • The foreman executes the daily plan in the field. At the end of the day, he fills out a timesheet with his crew’s hours and records the quantities completed.

  • The superintendent receives the daily plan from the foreman and checks that the details are complete and accurate, then approves the daily plan.

  • OPTIONAL: The payroll administrator reviews approved employee hours, reason codes, and extra pay and sends it via automated integration or Excel export to payroll for processing.

  • At the end of the week, the project controls manager runs a sync to import the claimed daily plan quantities into the Cost Breakdown Structure.


Learn how InEight Plan and Progress work together to keep information from the field updated in InEight Control.

A diagram of a company description automatically generated


Claiming Options

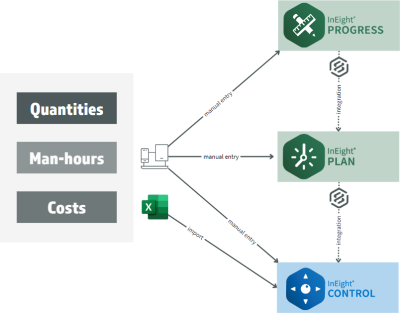

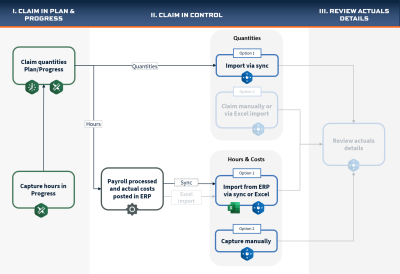

In order to view earned value metrics, you’ll need up-to-date values reflected in your current budget, current estimate, and project forecast.  To keep these values current, quantities, man-hours, and costs can be brought into InEight Control through several different methods.  You may find that you alternate between some of these methods based on your specific needs.  Review the workflow below to see how these values can be brought into Control.


Claim Quantities in Plan and Progress

Quantities are at the heart of cost tracking, since they are used to calculate what you’ve earned compared to the budget. Also, remaining quantity complete is the most important driver of remaining cost to complete, and therefore final cost.

For direct work, the Forecast (T/O) quantity is often the sum of many smaller quantity components, to accurately record and review quantities completed. These components then sum up to the total cost item quantity.

You can claim quantities at the component level in the Quantity Tracking module of InEight Plan or through daily plans in InEight Progress.

To enable claiming in Plan and Progress, deselect Hide in Plan, Progress, and Design for the cost item in InEight Control.

Option 1: Claim Quantities in Plan > Quantity Tracking

Step 1

Select the View As icon to see your workspace in the Data Blocks view.

Step 2

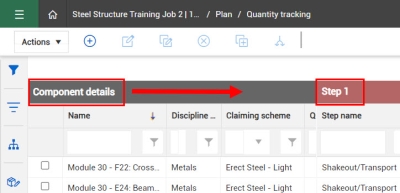

Navigate to the component and claiming scheme step you want to claim.

Step 3

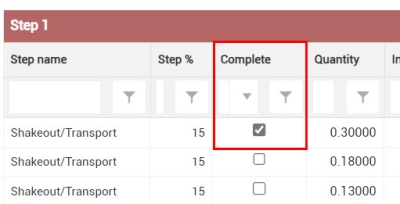

To claim 100% of the step, select the checkbox in the Complete column.

Step 4

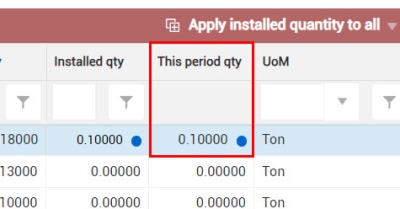

To claim a portion of the claiming scheme step, input the specific quantity in the This period qty field.

Step 5

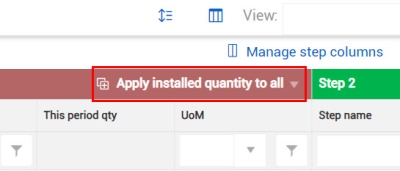

To claim quantities in bulk, use the Apply installed quantity to all button.

To learn more about claiming quantities in Plan, watch this video:

Option 2: Claim Quantities in Progress > Daily Planning

Step 1

Open a daily plan and select the Quantities tab.

A screenshot of a computer

Description automatically generated

Step 2

Select the appropriate task, then expand the component to claim.

A screenshot of a computer

Description automatically generated

Step 3

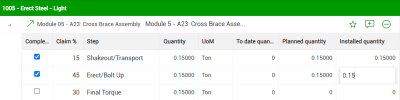

Claim progress of each step by either checking Complete or entering a quantity manually.

Once the quantities for this daily plan are approved, the quantities and percent complete will update in Plan > Quantity Tracking and are ready to sync with InEight Control.

A screenshot of a computer

Description automatically generated

To learn more about claiming quantities in Progress, watch this video:


Sync Quantities in Control

In InEight Control, a sync allows you to update claimed quantities and compare them to project costs and man-hours.

This assumes the project is set to Control with Confirmation in Project Settings of the InEight platform.

The following table specifies the typical flow for syncing quantities:

Direction

Description

Info Transferred

When to Run

InEight Plan to InEight Control

Get Plan Quantities

Quantities claimed in Plan push to Control Actual Qty to date field

Weekly after Payroll cost is imported into Control

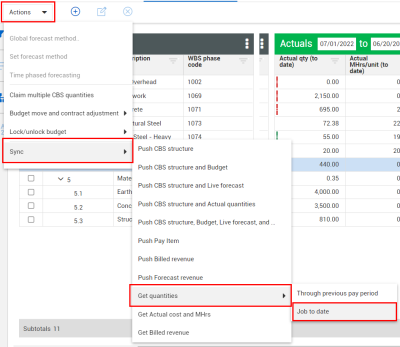

To perform a sync, select Actions > Sync > Get quantities > Job to date

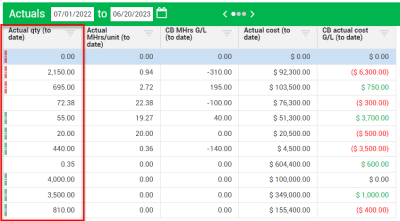

Quantities claimed in Plan or Progress will update in the Actual Qty fields for corresponding WBS phase code items.


Capture Hours in InEight Progress

Hours worked can be captured in InEight Progress either through the Daily Planning module or through the Weekly Time Sheet module.  Approved hours are sent to the ERP and can then be synced with InEight Control.

Option 1: Record hours in Progress > Daily Planning

Create a daily plan to track all of a crew’s activities in one place.  Track hours on the Time Sheet tab of the daily plan, then submit the crew’s hours, along with claimed quantities, as part of the daily plan.

  1. Open a daily plan and select the Time Sheet tab.

  2. Confirm the correct employees and tasks are loaded onto the time sheet.  Click Add tasks and resources to make additions.

  3. Under the appropriate task, add the hours worked for each employee.

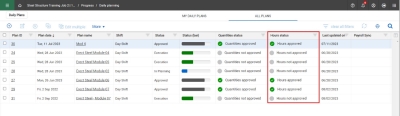

  4. When finished, ensure that all employees are signed out, and click Submit.  Then plan now has a status of “Awaiting Approval.”

  5. Once the hours have been approved by the assigned supervisor, they are sent to the ERP system.

Access the following links to learn more:

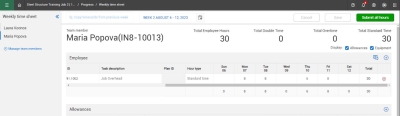

Option 2: Record hours in Progress > Weekly Time Sheet

Weekly Time Sheet is a convenient option for workers who are utilized across projects.  These team members can report their time through personal entries, or a supervisor can update entries for their team.

Access the following links to learn more:

Weekly Time Sheet


Sync Hours in Control

While quantities can be brought into Control directly from Plan, hours must first go through payroll processing before they’re ready to be tracked in Control.  For this reason, you’ll bring in hours and costs separately from quantities.

If a direct integration exists between InEight Control and your ERP system, you can follow a sync process to import hours and costs.

Note: this assumes the project is set to Control with Confirmation in Project Settings of the InEight platform.

Ideas on Site

When using a direct integration between InEight Control and your ERP, InEight Control will serve as the project controls interface for setting up and maintaining the project budget and cost structure. Every cost item created in InEight Control also needs to exist in your ERP system so actual costs can be recorded correctly. Your ERP system remains the system of record for all cost transactions, making it imperative that it remains in sync with any budget or structure changes. Your organization will need to consider what frequency is best for running each sync.


The following table specifies recommended integration flows and frequency:

Direction

Description

Info Transferred

When to Run











InEight Control to ERP

Push CBS structure

Cost Items, CBS Position Code and WBS Phase Code


After creating a new cost item or updating cost item Allow as- built settings. This sync also sends cost items to InEight Plan/Progress/Contract/Change/Design so they are available for use in those InEight solutions. Sync anytime you’ve made adjustments that are needed for components (i.e., Hide in plan setting).

Push CBS structure and Budget

Cost Items, OB, CB, and CE values for quantities, man-hours, and costs by cost category.

After performing any budget moves.

Push CBS structure and Live forecast

Cost Items, Forecasted Cost by phase code and cost category.

After making changes to the Project Live Forecast.

Push CBS structure and Actual quantities


Cost Items and actual quantities completed by phase code

After claiming quantities in Control or performing Get Plan quantity sync.

Push CBS structure, Budget, Live Forecast, and Actual Quantities

*See all above*

*See all above*


ERP to Control

Get Actual cost and MHRs

Cost and MHs from ERP into Control

After payroll runs and/or after accruals are entered. If cost is processed daily this may be more frequent or can be set up with a scheduled sync in project settings.


The following steps outline how to perform a sync for hours and costs.

Step 1

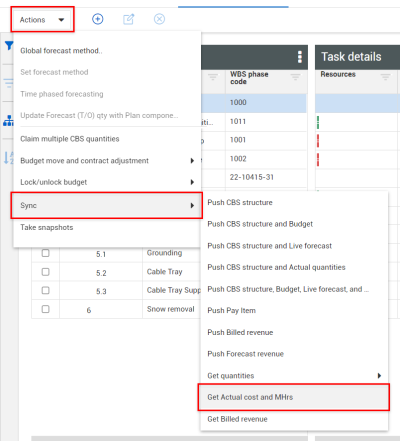

To perform a sync, select Actions > Sync > Get Actual cost and Mhrs.

Step 2

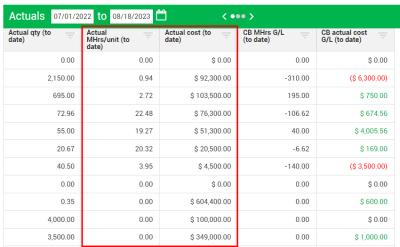

Hours claimed in Plan or Progress, and then confirmed along with costs in your ERP will update in the Actual Mhrs/unit and Actual cost fields for corresponding WBS phase code items.


Access the following links to learn more:

Quantity Claiming

Actuals
